Interplay effect in lung cancer proton therapy

Jun Hao Phua, Khong Wei Ang

National Cancer Centre Singapore, 169610, Singapore

Contributions: (I) Conception and design: All authors; (II) Administrative support: All authors; (III) Provision of study materials or patients: All authors; (IV) Collection and assembly of data: All authors; (V) Data analysis and interpretation: All authors; (VI) Manuscript writing: All authors; (VII) Final approval of manuscript: All authors.

Correspondence to: Jun Hao Phua. National Cancer Centre Singapore, 11 Hospital Drive, 169610, Singapore. Email: phua.jun.hao@nccs.com.sg.

Abstract: Pencil beam scanning proton therapy is used increasingly for cancer treatment. Although this technique allows superior dose avoidance to critical organs in comparison to passive scattering and X-rays photon-type radiation therapy, it is more susceptible to changes in the patient’s inherent anatomical motion, especially in the thoracic region. The uncertainties in dose distribution due to motion interplay in this region are significant and cannot be ignored. This paper focuses on the errors in dose delivery when motion interplay is involved, and how we can quantify them practically. With the proper tools for evaluating the magnitude of such errors, the best method to mitigate motion effects can be decided and designed for each individual patient.

Keywords: Proton therapy; pencil beam scanning; motion interplay


Received: 31 January 2018; Accepted: 19 November 2018; Published: 11 December 2018.

doi: 10.21037/jxym.2018.11.04


Introduction

Due to the advances in technology, the treatment of tumours using radiation has become very localised or conformal, even at sites that see higher potential of motion, for example lung. With intensity modulated radiation therapy (IMRT) and intensity modulated arc therapy (IMAT), the conformality of treatment has improved (1,2). With the advent of proton therapy, the dose received by the organs at risk can be lowered or controlled while not compromising the intended target dose (3-5), giving clinicians the option to further escalate treatment dose.

Tackling the problem of motion during treatment would be the logical approach to ensure quality of the treatment plan is not compromised during patient delivery. Some mitigation methods are as presented in the table, along with its purpose (Table 1).

Table 1
Table 1 Table describing the different techniques of motion management and the principles
Full table

However, the above methods cannot be applied to the same class of treatment routinely. The best method should be decided and designed for each individual patient. It is therefore important to fully understand the dynamics of the motions involved before a sound decision can be made.

The subject of motion interplay has been studied extensively in the context of radiation therapy using high energy X-ray (8,9). In particular, the two main types of motions are: (I) motion of the tumour and body parts; (II) motion of the multi-leaf collimators (MLCs) forming the different windows during IMRT or IMAT irradiations. Each of the motion has to be understood and modelled individually before being integrated to derive their composite or interplay effect. A comprehensive knowledge of these effects allows precise determination of dose deposition probability to any position within the tumour and the OARs.

This is even more important for proton therapy, due to the sharp dose fall-off at the end of the Bragg peak (10-12), which will be described in more detail in the following section.

This review paper aims to highlight the uncertainties involved in lung proton therapy due to motion interplays, and how we can quantify them practically.


Brief outline of proton therapy with pencil beam scanning

Proton therapy has been introduced to the world of radiation therapy since the 1950s (13). However, due to limitations of accelerator and magnet technology, traditional proton therapy machines were large, measuring several metres in width and height, and weighing hundreds of tons (14). Proton therapy is not widely used only until the early 2000s. A proton therapy machine has also become more affordable with the maturation of the technology, leading to an increase in Proton Therapy machine being constructed in hospital. Between 2010 and 2017, 50 new proton therapy facilities were started (15) (Figure 1).

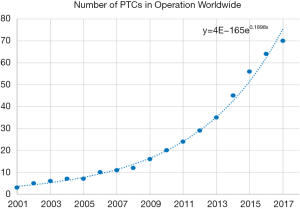

Figure 1 Number of proton therapy centres in operation worldwide from 2001 to 2017. Data from PTCOG (14). The curve shows an exponential increase.

The promise of proton therapy lies heavily on the existence of a Bragg peak, a narrow region where the dose deposition peaks and falls off sharply as shown in Figure 2. Protons with higher energies deposit their maximum dose at greater depths. By accumulating weighted dose depositions over a range of proton energies, a spread-out Bragg peak (SOBP) can be obtained. This is shown in Figure 3, where the proportion of proton fluence with energies 139, 137, 131, and 125 MeV are 0.32, 0.28, 0.23 and 0.17 respectively. Using more energies between the range 125 to 137 MeV, a more uniform “flat top” depth dose can be attained. By designing proper beam entries, a very conformal dose distribution can be achieved using proton therapy, with sufficiently coverage of the clinical tumour volume (CTV), and minimal dose to the OARs which are beyond the range of the maximum energy protons (16,17). An example is as shown in Figure 4.

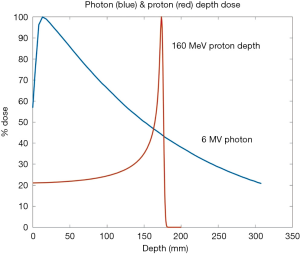

Figure 2 Measured data showing a 160 MeV proton Bragg peak and a 6 MV X-rays photon depth distribution. Note the sharp gradient of the Bragg peak compared to the photon’s more gradual fall-off.

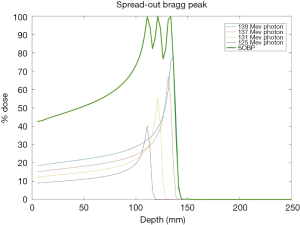

Figure 3 Curves showing formation of SOBP from a superposition of different energy Bragg peaks. The proportion of fluence for 139, 137, 131 and 125 MeV protons is 0.32, 0.28, 0.23 and 0.17 respectively. SOBP, spread-out Bragg peak.

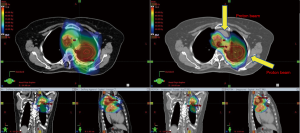

Figure 4 Dose distribution comparison between IMAT (left) and proton therapy (right) for lung radiation therapy. The proton therapy potentially deposits less dose to the OAR (spinal cord) as compared to the IMAT. IMAT, intensity modulated arc therapy.

Passive scattering and pencil beam scanning (PBS) are the two main techniques used in proton beam delivery (10,14).

In passive scattering nozzle, a beam of protons passes through a rotating, variable-thickness-modulating scatterer (the range modulation wheel in Figure 5) to spread the beam in the z-direction, then passes a second scatterer downstream to further spread the beam laterally in the x-y direction. This results in a 3-dimensional box volume analogous to X-rays’ 3-D conformal radiation therapy (3DCRT).

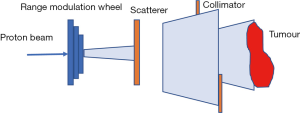

Figure 5 Conceptual schematic of a passive scattering proton system.

In PBS nozzle, a sharp pencil beam of protons is deflected over x-y directions using magnetic fields (10,14,18,19). Every beam has a finite beam spot size (typically millimetres in dimensions) with fluence that is Gaussian distributed. The beam is swept laterally orthogonal to the beam direction. To create dose deposition at varying depth of the target, the proton beam energy is changed while maintaining the lateral scanning. A superposition of all the pencil beams therefore creates a 3-D dose distribution (Figure 6).

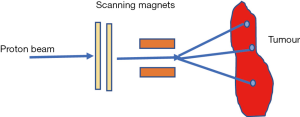

Figure 6 Conceptual schematics of a pencil beam scanning system.

Although passive scattering currently dominates clinical use, PBS is the more advanced technology and it is becoming the preferred choice for new centres (10,14). The reason is PBS allows for the delivery of intensity modulated proton therapy (IMPT) which allows for greater dose conformity similar to IMRT in photons radiation therapy (17).


Motion interplay effects

Highly conformal doses are deposited to the stationary target by the proton pencil beam scanning. Interplay effect is observed as the dose deposition happen when the target moves. It results in a sub-optimal dose distribution contributed by the lack of synchronization between the beam delivery and the desired target position. Steep dose gradients are planned for between the target volume and the normal tissue, thus when the target moves, interplay will result in dose degradation, such as, regions of over-dosage and under-dosage, in comparison with the ‘static’ treatment plan.

As shown in Figure 7, the target is simulated to move diagonally in a periodic manner, while a particle beam sweeps across left to right and top to bottom. Some parts of the tumour get irradiated only when it crosses the path of the sweeping pencil beam. This will result in regions of over-dose and under-dose (20).

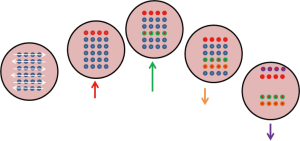

Figure 7 Sequence showing beam and target motion interplay. The red spots represent the parts that receive irradiation. The pink circle represents the target moving, with the intended dose delivery distribution represented by the blue circles, with the beam scanning direction represented by the white arrows. As the target moves with the direction of the arrow indicated green, yellow and purple, the dose received by the target is represented by the red filling, with the colour of the directional arrow outlined. The final dose distribution is represented by the last circle showing the deteriorated dose distribution

4D composite dose

A mathematical framework can be set up to quantify interplay dosimetric effects (21). In general, the 4D composite dose model can be written as

Dm(r) is the modified dose distribution at position r. Do(rr') is the original reference plan dose distribution at position rr'. P(r') is the probability density function describing the target motion due to breathing. Eq. [1] is integrated over all the positions r' of the target’s trajectory.

The breathing pattern can be described by

Zo is the position at exhale, b is the amplitude of the motion, Zob is the position at inhale, τ is the period of breathing cycle, n is a parameter that determines general shape of the breathing model, and φ is the starting phase of the breathing cycle.

P(r') can be expressed as a function of position as derived from [2,3]

In a single dimension,

For the above form to be completely true requires integration over infinite number of fractions and breathing cycles.

In practice, this can be achieved approximately, for conventional fractionated treatments of typically 30 fractions of 2 Gy each. Furthermore, each beam-on time takes minutes which involves a lot of cycles. Thus, interplay effect is more significant in hypo-fractionated SBRT/SRS type cases (22).


Measurements on Interplay effects with Proton Scanning Beam

The measurements on the interplay effect are best presented by Bert et al. in 2008 (20) and Ciocca et al. in 2016 (23). In Bert’s paper, square fields of 110 mm defined by a 50% isodose line are irradiated with monoenergetic protons (spot size 8 mm FWHM) and measured using films. An amplitude of 8 to 20 mm, period of 3–7 s per cycle, and starting phase from 0 to 270 degrees are used as variables. A static target is first covered by a planned static dose distribution which forms the reference irradiation measurement. The dose distributions with motion interplay are then compared with the reference measurement to show the random ‘hot’ and ‘cold’ spots after irradiation.

Comparing across films with the same starting phase and breathing period shows that interplay effects worsen with increasing amplitudes. It was observed that this is true regardless of starting breathing phase. Comparing measurements of motion with the same amplitude and breathing period but different starting phases further shows that tumour starting position did not affect the interplay effects. In conclusion, amplitude seems to play a more significant role. In that paper, it was observed that interplay effects also worsen with slower breathing. It was observed that the local over- and under-dose is “smeared out”. This could be due to mismatch in timing of breathing and beam scanning speed.

In another measurement, the film is moved vertically and horizontally respectively (20), while the beam scanning takes place horizontally. It is observed that the interplay effect is significantly inferior when the direction of target motion is perpendicular to the scanning beam.

Finally, a metallic screw is irradiated with proton beams, and the proton radiograph image of the screw is captured on film (23). The static screw showed up as a sharp image. The moving screw images appear blurred due to interplay effects (23).


Theoretical simulations of interplay effects with proton pencil scanning beam

Due to the many scenarios that may occur, measurements to quantify and understand interplay effects may not be practical in a busy clinic. A simulation may be a good tool to use for evaluating whether interplay effects are important before treatment. To the best of the authors’ knowledge, at this time of writing, there is no one integrated commercial treatment planning system that can perform such simulations. In-house developments should be encouraged and validated.

The general work flow to investigate the effects of interplay is outlined as follows:

  • Image a patient using 4DCT with a proper respiratory surrogate signal.
  • Create a static reference plan which delivers a dose to an internal tumour volume ITV that incorporates the full trajectory of the tumour volume calculated to a static patient CT with averaged Hounsfield units derived from the 4DCT.
  • Create a plan, based on the reference treatment plan that maps the dose delivered to the different phases of a 4DCT image to a static reference phase image, and summing up these doses. This simulates delivering dose to a moving patient anatomy.

The dose distributions of [I] and [III] will be evaluated and compared.

The following sub-sections further describe each part of the work flow.

4DCT imaging

The use of 4DCT for imaging moving tumours has become an industry standard since it is commercially available in 2002 (24). In principle, 4DCT image acquisition is the real-time recording of a respiratory signal simultaneously with image over-sampling. By re-imaging the same anatomy at different respiratory positions, a sufficient quantity of CT slices allows respiratory sorting with acceptable spatial accuracy. The over-sampled images from the CT dataset are then sorted into several bins or phases, based on the information obtained from the respiratory signal. A 4DCT dataset is then a complete set of image bins acquired over a respiratory cycle (24). Various commercial systems such as RPM (Varian Medical Systems, Inc.) and Abches III (APEX Medical, Inc.) can be used to obtain the respiratory signal.

The 4DCT dataset normally includes 10 sets of images from the 10 phases of breathing in a cycle, CT0% to CT90%. The end-exhalation phase is usually CT50%, while CT0% and CT90% are end-inhalation phases. Each phase will show the tumour at different positions. An average of all the images from the 10 phases gives an average CT image which incorporates smeared out motion artefacts. This image is typically used in radiation therapy for dose calculation to a pseudo moving patient.

Static reference treatment plan

The generic workflow of treatment involving tumour in motion for megavoltage X-ray treatment is as followed (25,26):

  • GTV from each respiratory phase of the 4DCT is used to generate the ITV that encloses all of the identified GTVs.
  • A uniform expansion margin is applied to the ITV to obtain the PTV.
  • The plan is then robust optimized such that the dose covers the ITV.

This described technique can be extended to proton scanning beam therapy.

Calculation of 4D composite dose

A practical solution to the 4D composite dose calculation could be as follows:

  • Use all 10 respiratory phases’ images for dose calculations.
  • Based on the specifications of the proton delivery system the beam on timing for each spot needs to be determined. The spots list from the reference plan, partition and assign each spot to its corresponding respiratory phase.
  • With 10 sets of beam spots assigned to each image CT0% to CT90%, the dose delivered to each GTV is calculated.
  • In order to accumulate the dose delivered to the patient, all the spatial voxels’ dose in each respiratory phase must be mapped into a reference dataset and summed up. Usually the CT50% phase image is chosen as the reference image. 2 mapping strategies are described in the next section.
  • Various scenarios are calculated by repeating (I) to (IV) each with different starting phases, simulating different starting tumour locations. The probability of each starting phase is determined. This probability is used to modulate the weightage of each scenario in the final accumulation.

Dose mapping strategies for 4D dose accumulation

For accurate dose accumulation, there must be good correlation of anatomy structures between the source and target voxels. This can be achieved by generating the displacement vector field (DVF) through deformable image registration (DIR). Commercial products available for deformable registration are MIM Maestro (MIM Software Inc., Cleveland, OH, USA), or, Velocity (Varian Medical Systems, Inc.).

The DIR is performed on the image grid, while the radiation dose is calculated on the dose grid separately. Values from the dose grid must be transferred to the image grid and assigned to the anatomy structures there. Direct dose mapping is one method for performing such dose transfer. Using the DVF, dose value from every source voxel is directly transferred to the corresponding target voxel. However, because the dose and image grids are independent and usually their voxel centres do not overlap, such direct transfer using DVF often result in a target voxel receiving dose from more than one source voxel.

The energy-mass transfer (EMT) (27) algorithm takes care of the overlaps in dose transfer. The mass as well as the energy of each source voxel is determined. They are transferred to the target voxel based on the DVF. The total energy in each target voxel is divided by the mass it receives to give the dose value. This method follows strictly the definition of dose.

The DDM and EMT algorithms produced markedly different cumulative dose in regions with sharp mass-density discrepancies or high dose gradients. The EMT should be used as it is a more physically sound model of dose transfer (27).

Comparison and evaluation of 4D dose distribution and static reference dose distribution

Studies from various groups based on variations of the above-mentioned strategy had been documented.

Bert et al. showed that for particle beam therapy, interplay of scanned beams and moving targets severely affected planned dose distributions. Fractionated treatment delivery potentially mitigates at least parts of these interplay effects (14). This supported results from Bortfeld, Chui, Jiang and Schaefer (9,28-30) who had shown that interplay effects in IMRT can be smoothened with multiple fields and a large number of fractions. The standard deviation of the dose distribution is within 1% of the mean. Hypo-fractionated lung SBRT studies by Zou et al. showed that the tumour volume coverage is not significantly different between static and dynamic simulation, however, for OARs that are close to the target, large dose variations were noted (22). However, Bert found that hypo-fractionated treatment of moving targets with scanned particle beams requires motion mitigation techniques (21). Kardar et al. reported that interplay effects can be mitigated by increasing the number of iso-layered re-scanning in each fraction (31).


Conclusions

When scanning proton beam treatment delivery involves motion interplay, the planned dose distribution is deteriorated. The extent or amplitude of the motion plays a significant role in this interplay; thus, it is important that motion is reduced or mitigated. However, treatments with large fractionations will help to average out the hot and cold spots caused by motion interplay. Awareness of these effects allows clinicians and their dosimetry teams to design proper treatment strategies, for example, re-scanning the tumour region by splitting each single field into multiple fields within the same fraction. It may be worth investing in simulation tools development. A proper tool for evaluation of motion interplay effects on any single patient will give confidence in the treatment prescribed.


Acknowledgements

Thank Hong Qi Tan for his invaluable comments and proof-reading.


Footnote

Conflicts of Interest: The authors have no conflicts of interest to declare.
